【Stainless Steel Angle Bar】
Product Description of Stainless Steel Angle Bar

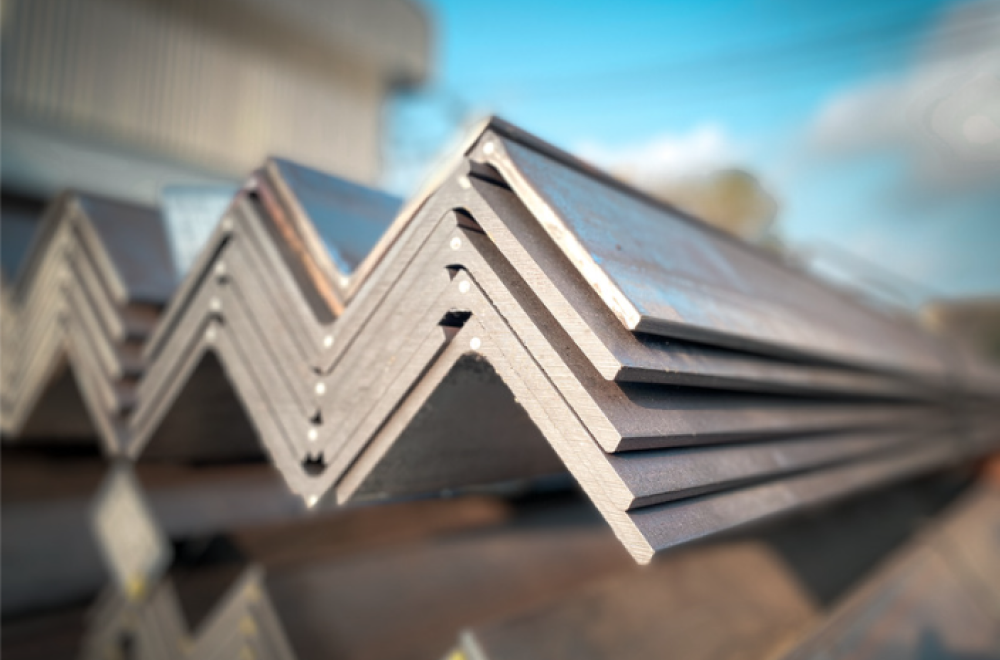

At YES Stainless International, we offer high-quality stainless steel angle bars designed for strength, durability, and versatility. Our bent angle bars are precision-formed into an L-shape, providing excellent support and structural integrity for various industrial, construction, and architectural applications, and made from premium stainless steel grades like 304 and 316, our angle bars deliver exceptional corrosion resistance and long-lasting performance. Whether you need equal or unequal leg lengths, our bent angle bars are available in various sizes to meet your needs. Trust YES Stainless International for reliable, durable, and high-performance bent angle bars for your next project.
Product Overview of Stainless Steel Angle Bar :
International Standard | Dimension | Stainless Steel Grade | Surface Finishes |
ASTM A276 ASTM A484M | Thickness: 3-12mm Width: 25x25 - 100x100mm | 304(L), 316L | No.1, Cold drawing |
Key Features of Stainless Steel Angle Bar:
- Premium Stainless Steel: Our stainless steel angle bars are made from top-grade stainless steel, providing excellent corrosion resistance and robust durability, ensuring reliable performance in demanding environments.
- Versatile Applications: Suitable for a wide range of uses, including construction, structural support, framing, and bracing our stainless steel angle bars offer exceptional performance and adaptability for various industrial needs.
- Optional Precision Laser Cutting: Available to create holes or designs on the stainless steel angle bars, offering customization for specific application needs.
Product Specification of Stainless Steel Angle Bar
Width (mm) | Thickness (mm) | |||
25x25 | 3 | 4 | 5 | |
30x30 | 3 | 4 | 5 | |
40x40 | 3 | 4 | 5 | 6 |
50x50 | 4 | 5 | 6 | |
60x60 | 5 | 6 | 7 | |
65x65 | 5 | 6 | 7 | |
70x70 | 6 | 7 | 8 | |
75x75 | 6 | 7 | 8 | 9 |
80x80 | 7 | 8 | 9 | 10 |
100x100 | 8 | 9 | 10 | 12 |
Width Tolerance (mm) | Thickness Tolerance(mm) |
± 5% | ± 5% |
